SAE Flange Lids

SAE is a Lid used to protect SAE flanges intended for 3000 PSI and 6000 PSI. With LDPE material as standard they offer a neat finish. They are commonly used to protect products from transit-damage, heat, dirt, moisture and corrosion.
MaterialLDPE
ColourRED
UnitsMetric (mm)

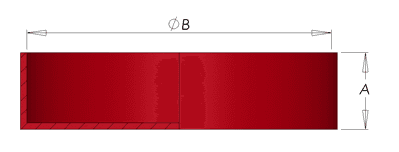

Image of SAE Flange Lids

Available options

You can scroll horizontally on each option to see more details.

  • DescriptionPSI3-1/2

    A30,2

    B9,5

    GASPSI 3000 SAE 1/2"

  • DescriptionPSI3-3/4

    A38,1

    B9,5

    GASPSI 3000 SAE 3/4"

  • DescriptionPSI3-1

    A44,4

    B13,5

    GASPSI 3000 SAE 1"

  • DescriptionPSI3-1-1/4

    A50,8

    B14,0

    GASPSI 3000 SAE 1 1/4"

  • DescriptionPSI3-1-1/2

    A60,3

    B14,5

    GASPSI 3000 SAE 1 1/2"

  • DescriptionPSI3-2

    A71,0

    B12,0

    GASPSI 3000 SAE 2"

  • DescriptionPSI3-3

    A103,,2

    B105,5

    C9,7

    D14,0

    GASPSI 3000 SAE 3"

  • DescriptionPSI6-1/2

    A31,7

    B10,5

    GASPSI 6000 SAE 1/2"

  • DescriptionPSI6-3/4

    A41,3

    B11,0

    GASPSI 6000 SAE 3/4"

  • DescriptionPSI6-1

    A47,6

    B12,0

    GASPSI 6000 SAE 1"

  • DescriptionPSI6-1-1/4

    A54,0

    B12,5

    GASPSI 6000 SAE 1 1/4"

  • DescriptionPSI6-1-1/2

    A63,5

    B14,0

    GASPSI 6000 SAE 1 1/2"

  • DescriptionFlange Lid 68

    A68,2

    B70,3

    C14,2

    D17,5

  • DescriptionPSI6-2

    A79,4

    B14,0

    GASPSI 6000 SAE 2"

  • DescriptionFlange Lid 78

    A48,2

    B80,3

    C14,2

    D17,5

  • DescriptionFlange Lid 83,5

    A83,7

    B85,8

    C14,2

    D17,5

  • DescriptionFlange Lid 99

    A99,3

    B101,3

    C16,2

    D19,5
