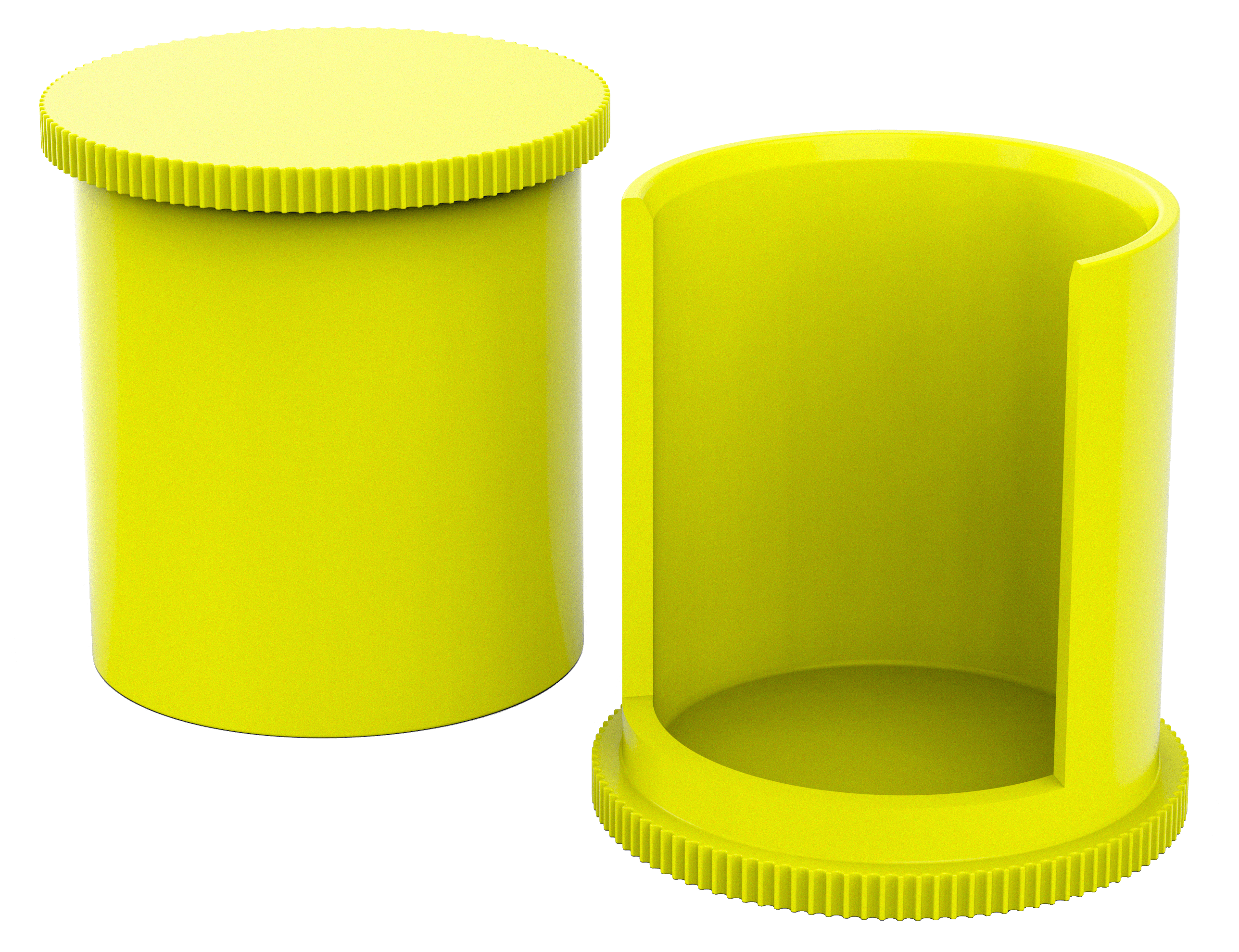

Flexible Lids With Flange
| HSP is a soft flexible Lid with flange which provides a good finish to a tube, pipe or connection. With rubber-like TPE material as standard they are versatile and have proven successful in a wide variety of applications. They are commonly used to protect products from transit-damage, heat, dirt, moisture and corrosion. | |
| Material | TPE |
| Colour | YELLOW |
| Units | Metric (mm) |
Available options
You can scroll horizontally on each option to see more details.

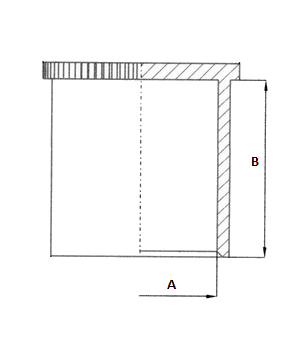

DescriptionHSP10
A6,0
B10,0
DescriptionHSP20
A8,0
B10,0
MetricM8
DescriptionHSP30
A10,0
B10,0
MetricM10
GAS1/8”
UNF7/16"
DescriptionHSP40
A12,0
B10,0
MetricM12
GAS1/4”
UNF1/2"
DescriptionHSP50
A14,0
B15,0
MetricM14
UNF9/16"
DescriptionHSP60
A15,0
B15,0
DescriptionHSP70
A16,0
B15,0
MetricM16
DescriptionHSP80
A18,0
B15,0
MetricM18
UNF3/4"
DescriptionHSP90
A20,0
B20,0
MetricM20
GAS1/2”
UNF13/16"
DescriptionHSP100
A22,0
B20,0
MetricM22
UNF7/8"
DescriptionHSP110
A12,8
B10,0
GAS1/4”
DescriptionHSP120
A16,3
B12,0
GAS3/8”
UNF11/16"
DescriptionHSP130
A26,0
B19,5
MetricM26/M27
GAS3/4”
UNF1-1/16"
DescriptionHSP130
A24,0
B18,0
DescriptionHSP130
A20,5
B14,0
GAS1/2”
