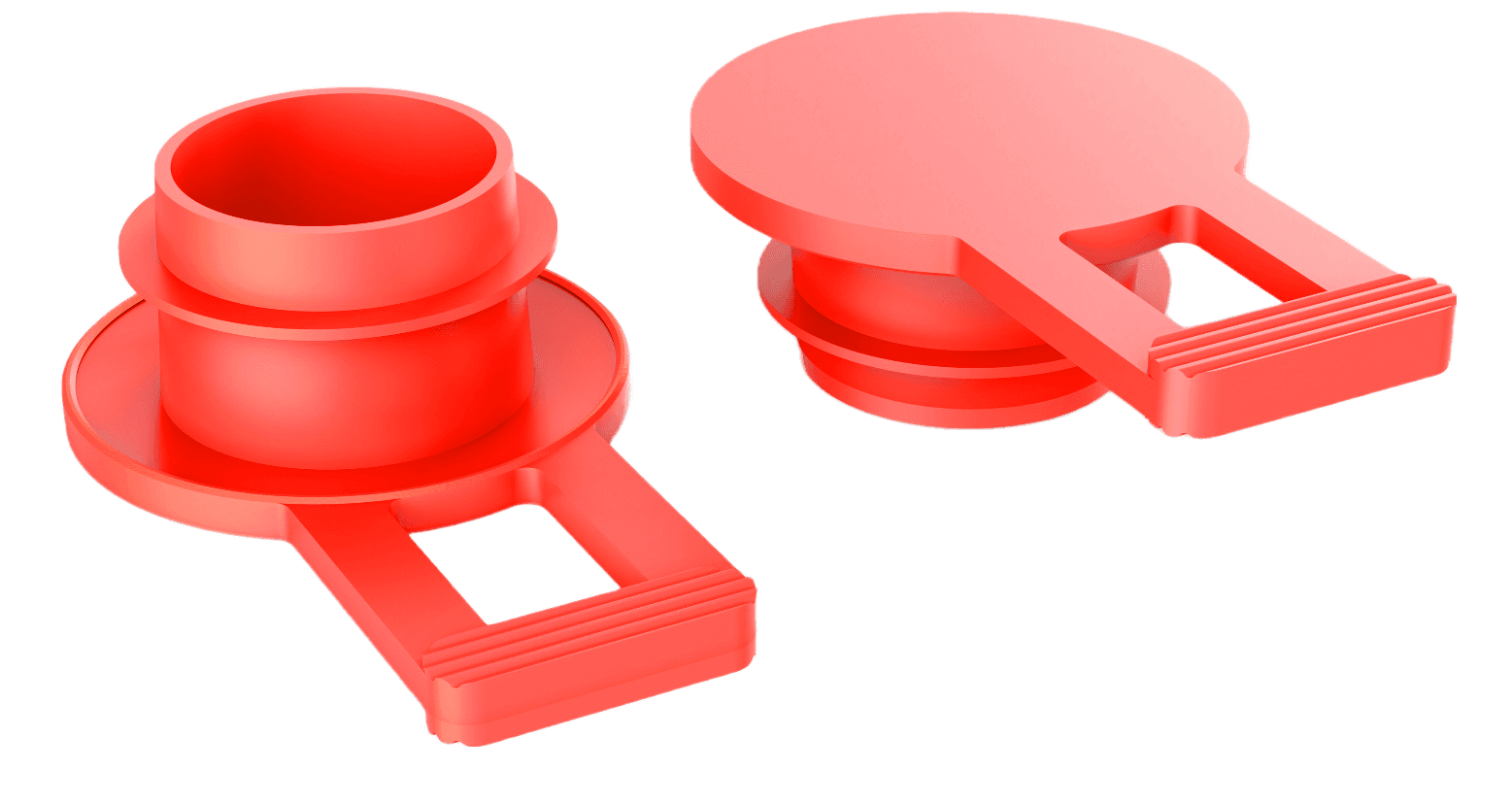

Pull Tab Plugs
| KSLH is a push-fit plug with a pull tab for quick and easy removal. They are made with LDPE material as standard which make the cost-effective and efficient. They are flexible for easier, fast and convenient fitting. Most commonly used to seal hydraulic applications from transit-damage, heat, dirt, moisture and corrosion. | |
| Material | LDPE |
| Colour | RED |
| Units | Metric (mm) |
Available options
You can scroll horizontally on each option to see more details.

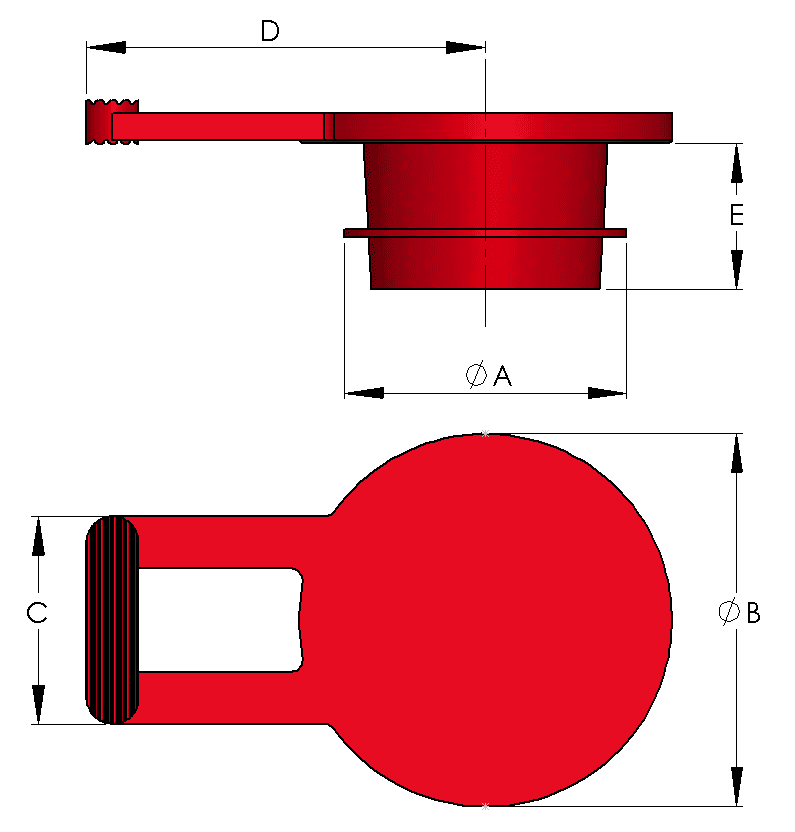

DescriptionKSLH12
A11,8
B16,0
C12,0
D18,0
E7,0
MetricM12 x 1,5
DescriptionKSLH14
A13,8
B19,0
C12,0
D19,5
E7,0
MetricM14 x 1,5
DescriptionKSLH16
A15,8
B21,5
C14,0
D23,0
E7,0
MetricM16 x 1,5
DescriptionKSLH18
A17,8
B25,0
C14,0
D25,0
E7,5
MetricM18 x 1,5
DescriptionKSLH20
A19,8
B27,0
C14,0
D26,0
E7,5
MetricM20 x 1,5
DescriptionKSLH22
A21,8
B29,0
C14,0
D31,0
E7,5
MetricM22 x 1,5
DescriptionKSLH24
A23,8
B30,0
C14,0
D31,0
E7,5
MetricM24 x 1,5
DescriptionKSLH26
A25,8
B32,0
C14,0
D31,0
E8,0
MetricM26 x 1,5
DescriptionKSLH30
A29,5
B35,0
C14,0
D31,5
E10,0
MetricM30 x 2
DescriptionKSLH36
A35,5
B40,0
C14,0
D34,0
E10,0
MetricM36 x 2
DescriptionKSLH42
A41,5
B50,0
C15,0
D40,0
E10,0
MetricM42 x 2
DescriptionKSLH45
A44,5
B50,0
C15,0
D40,0
E10,0
MetricM45 x 2
DescriptionKSLH52
A51,5
B60,0
C15,0
D45,0
E10,0
MetricM52 x 2
DescriptionKSLHG1/8
A9,5
B16,0
C12,0
D23,5
E8,0
GASGAS 1/8”
DescriptionKSLHG1/4
A13,0
B19,0
C12,0
D19,5
E7,0
GASGAS 1/4"
DescriptionKSLHG3/8
A16,3
B21,5
C14,0
D23,0
E7,0
GASGAS 3/8"
DescriptionKSLHG1/2
A20,6
B27,0
C14,0
D26,0
E7,5
GASGAS 1/2”
DescriptionKSLHG3/4
A25,8
B32,0
C14,0
D25,8
E8,0
GASGAS 3/4”
DescriptionKSLHG1
A32,5
B40,0
C14,0
D34,0
E10,0
GASGAS 1”
